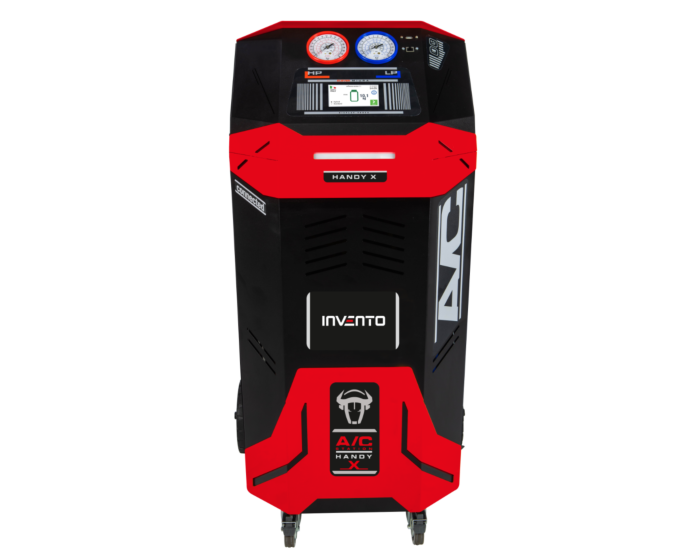

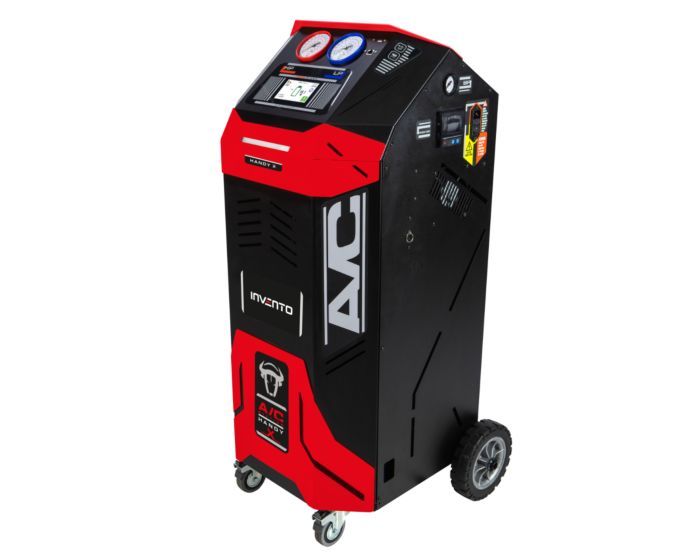

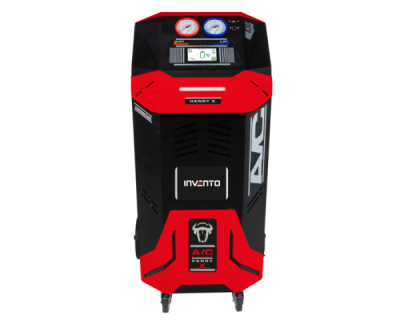

INVENTO Handy X R134a AC station
The INVENTO Handy X is an automatic device that uses R134a as a refrigerant and operates without any involvement from a service technician. The device is characterised by easy and comfortable operation thanks to touch screen 5", automatic valves and WiFi connection.
The Handy X has a passenger vehicle database. Operation of the device is reported via special printout from a thermal printer which constitutes standard equipment.
General features:
- Database: passenger vehicles,
- Ability to select individual functions, i.e. gas extraction, vacuum, filling,
- Report printing,
- Automatic valves,
- Automatic system filling,
- Leak test,
- Automatic oil/UV injection – scale,
- WiFi connection,
- Touchscreen 5'',
- Option to update the database (for an extra charge).
Advantages:

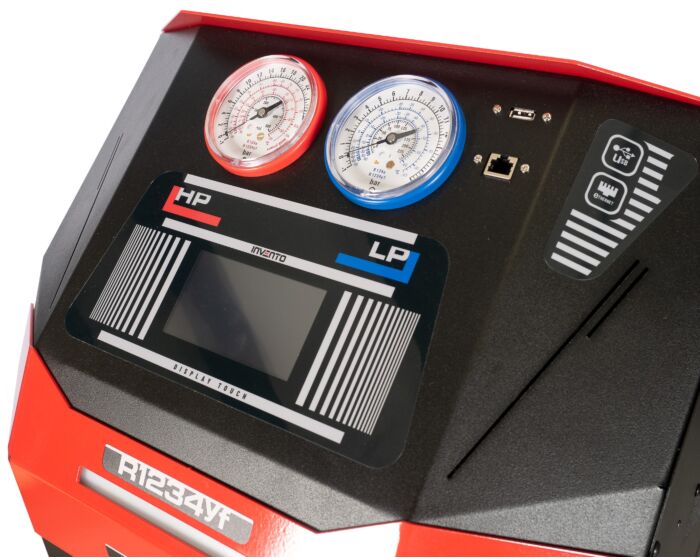

5'' color touch screen
- A large touch screen, quick and convenient menu.
WiFi
- It allows for convenient control and control thanks to the application on your smartphone.
Cleaning oil lines
- Device performs self-cleaning of the lines to prepare the system for the new oil.
Automatic valves
- They facilitate and speed up work with the device.
Database
- Database containing passenger vehicles.

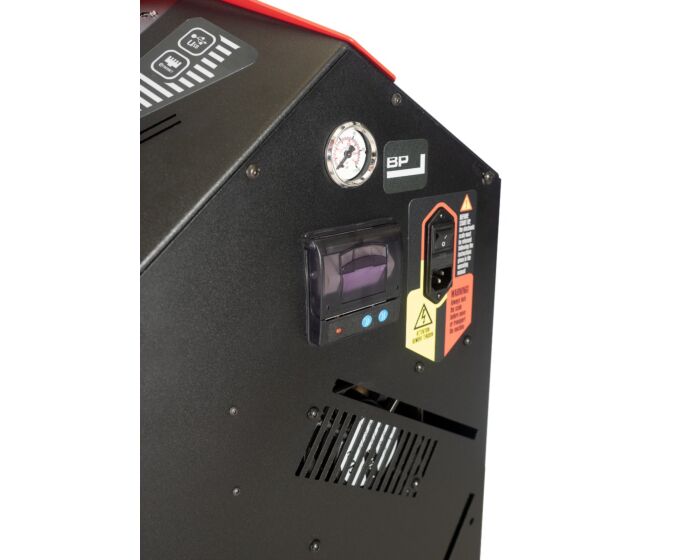

Thermal printer
- Enables reporting of every action performed by the device.
Ease of use
- Large display, multilingual messages and a very fast, convenient menu with a 4,7" display.
Tekniska Specifikationer – INVENTO Handy Agri
Nedan följer de detaljerade tekniska parametrarna för enheten. Denna maskin kombinerar kraftfull prestanda med modern teknik för att säkerställa högsta precision vid varje service.
Egenskap | SpecifikationKöldmedium | R134a
Tankkapacitet | 10 kg
Kompressorprestanda | 300 g/min
Vakuumpump | 100 l/min
Ventiler | Automatiska
Tankuppvärmning | Nej
Låsbar våg | Ja (för säker transport)
Olja- & UV-insprutning | Elektronisk våg

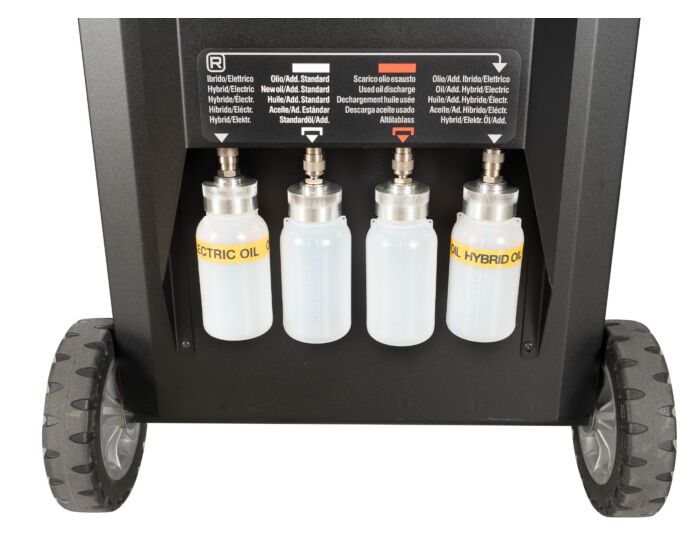

Behållare för olja/UV | 3 st
POE-behållare | Ja (för el- och hybridbilar)
Slanglängd | 2,5 m
Skrivare | Inbyggd termisk skrivare
Display | 5" Touchscreen (pekskärm)
WiFi-anslutning | Ja
Dimensioner | 566 x 590 x 1120 mm
Vikt | 80 kg
